Quick Details

  • Condition: New
  • Type: Rip Saw
  • Use: Woodworking
  • Style: Vertical
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: ZMAX
  • Model Number: MJ-3016
  • Usage: processing the wood(Rubber plank woodworking multi rip saw machine )
  • Voltage: 380V
  • Power(W): 45.5kw
  • Dimension(L*W*H): 3050*1650*1850(mm)
  • Weight: 1500kg
  • Certification: CE
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Max. working width: 300mm
  • Max. working height: 175mm
  • Min. working height: 30mm
  • Min. working length: 800mm
  • Up spindle power: 22kw
  • Bottom spindle power: 22kw
  • Feeding speed: 0-8m/min
  • Feeding power: 1.5kw
  • Total power: 45.5kw(62HP)
  • Saw blade specification: 280*3.0*40*24T*4K

Packaging & Delivery

Packaging Details EPE Film Packing(Free Service). Wooden Case Paching (Pay Service).
Delivery Time 35-40 day after payment

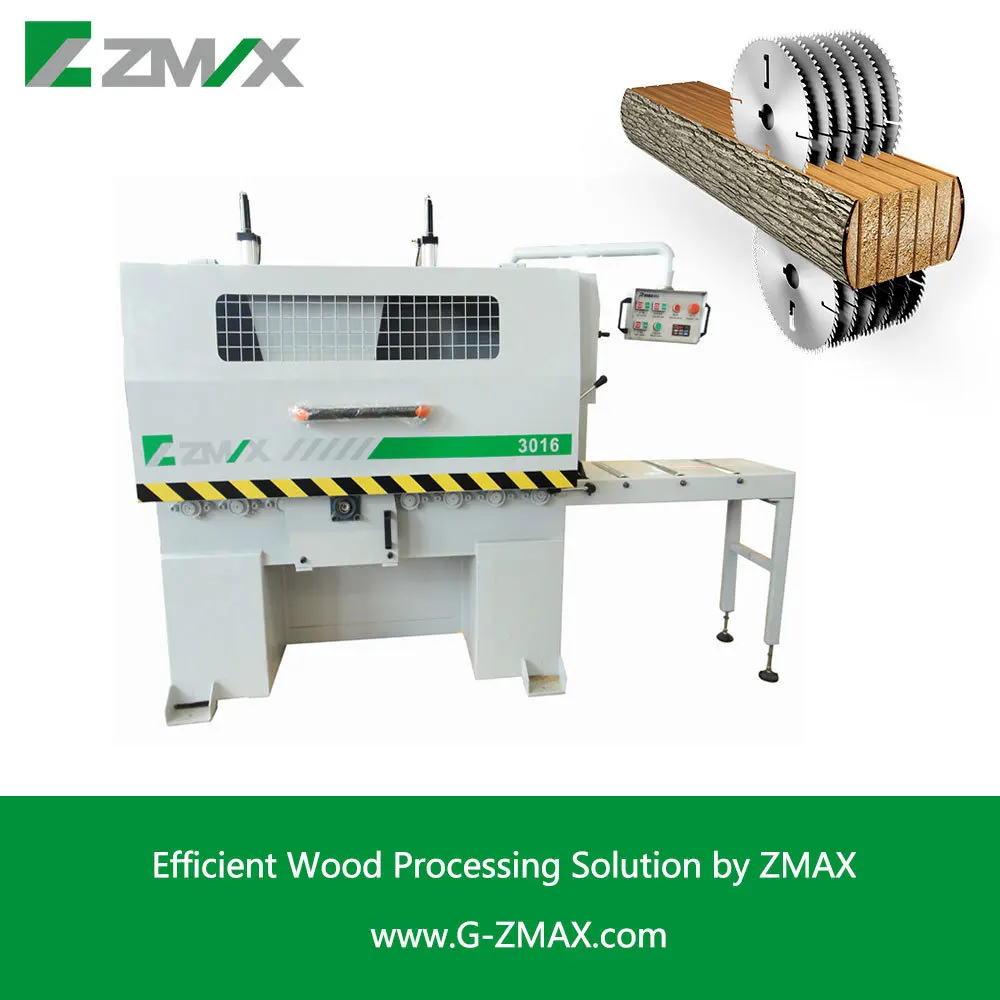

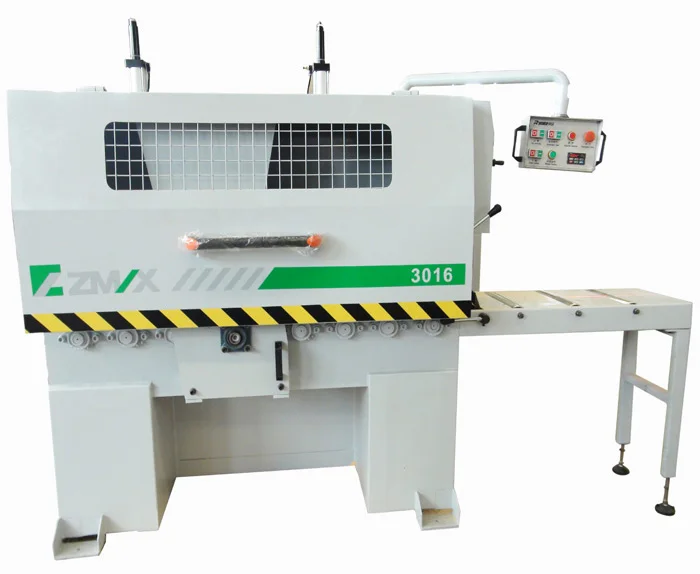

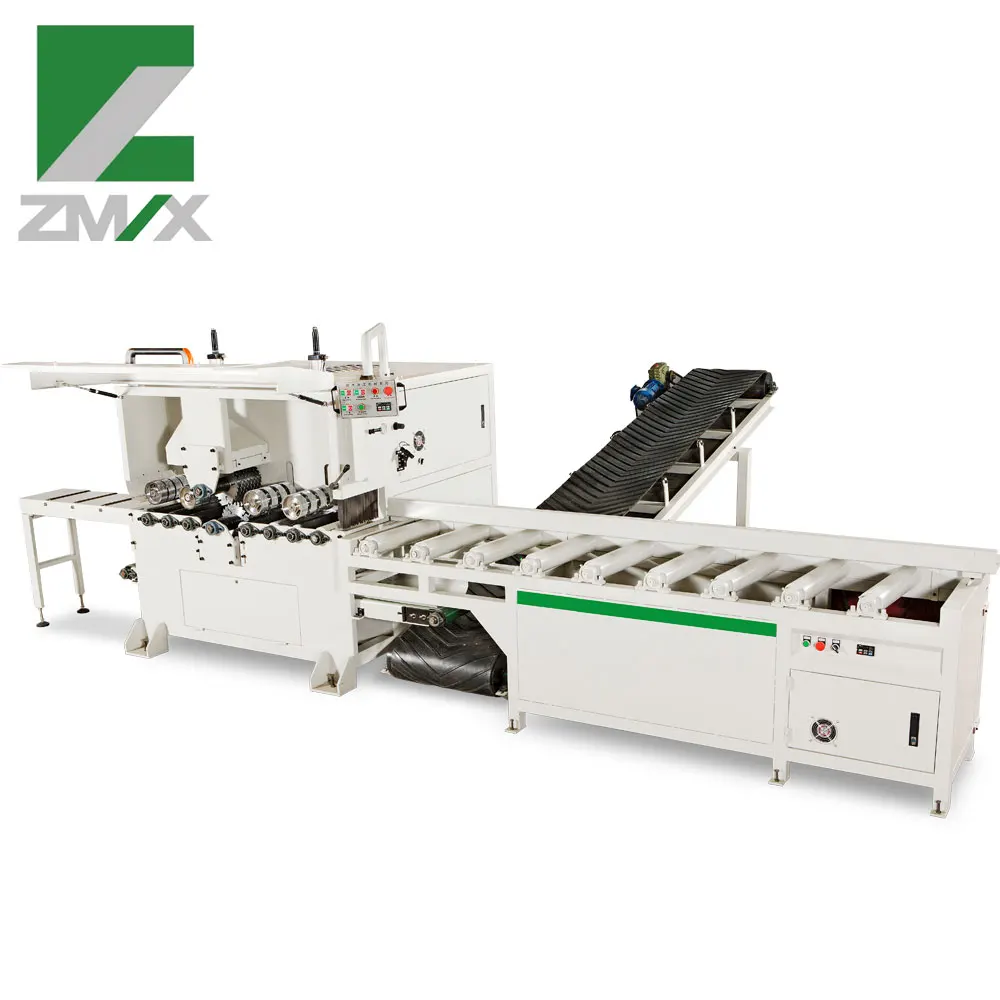

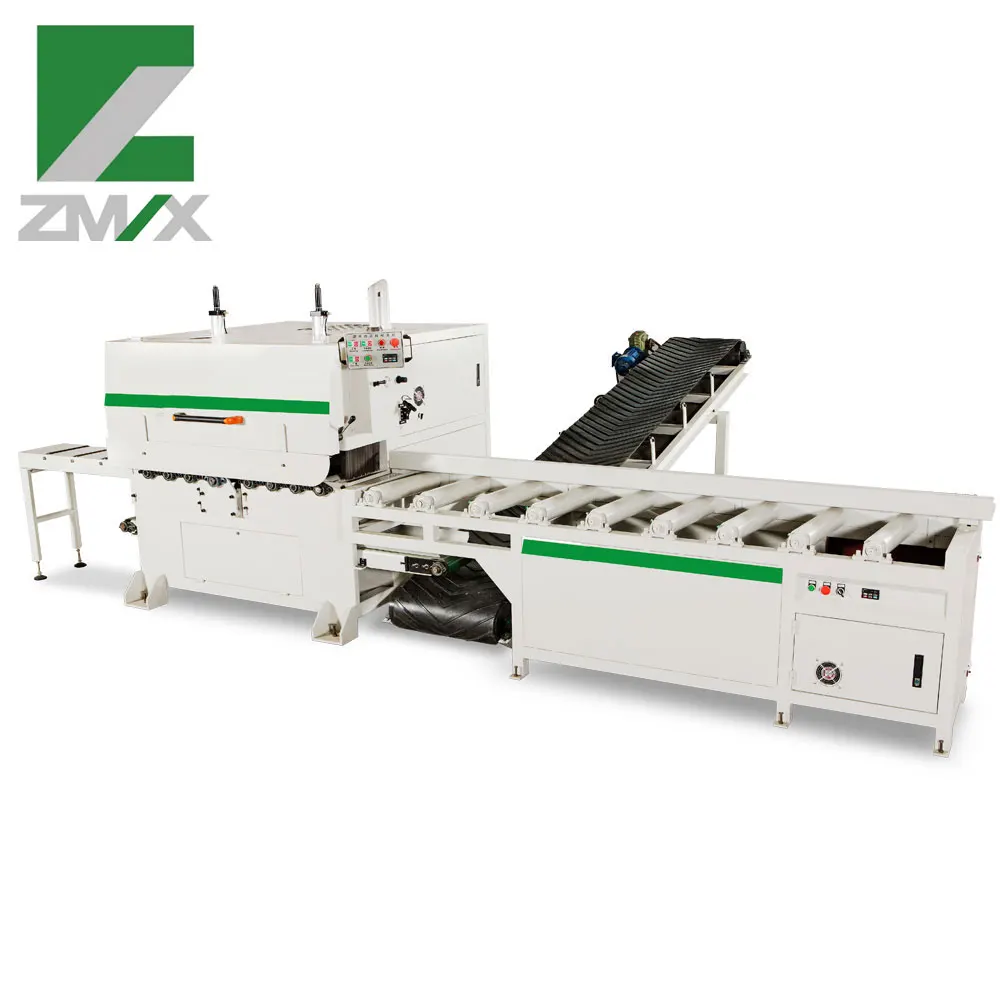

Woodworking Multi Rip Circular Saw Machine MJ3016 Timber Cutting Machine
Model : MJ-3016

Product Description



Features:

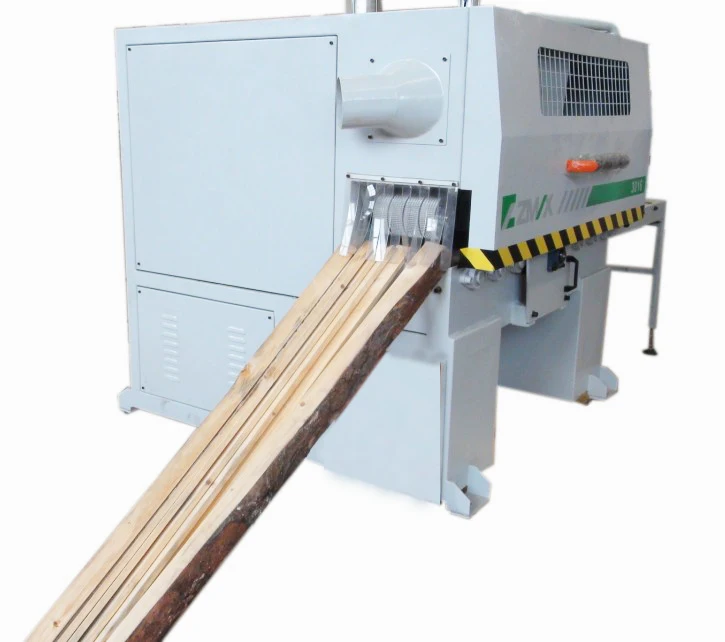

Machine designed for Plank processing, max working thickness 175mm, max working width 300mm, two bearing structure. Multi rip saw working high efficiency.

Rubber plank woodworking multi rip saw machine

Advantages:

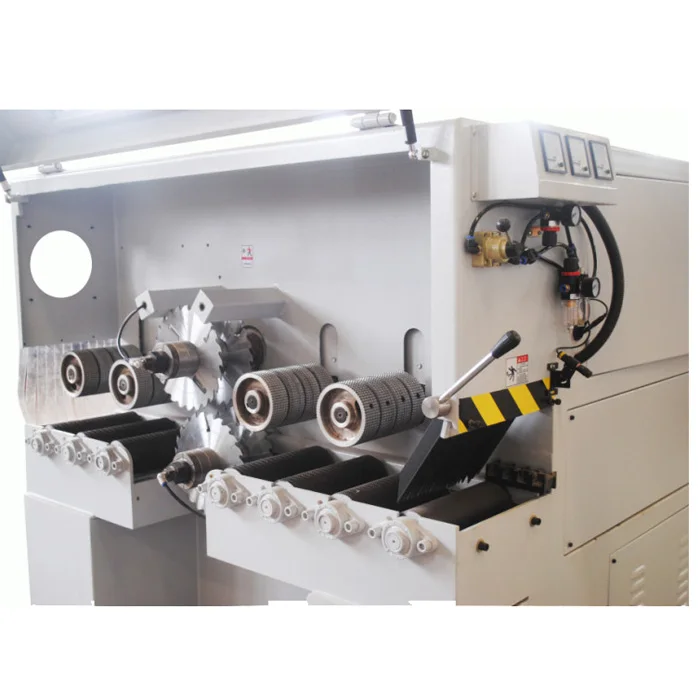

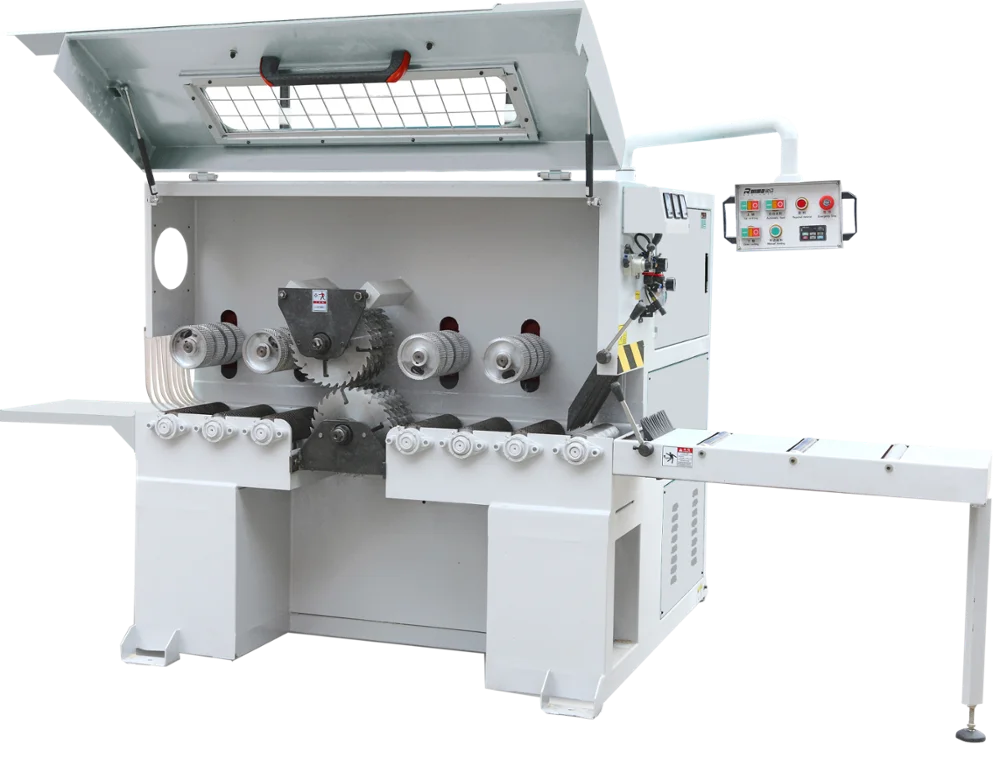

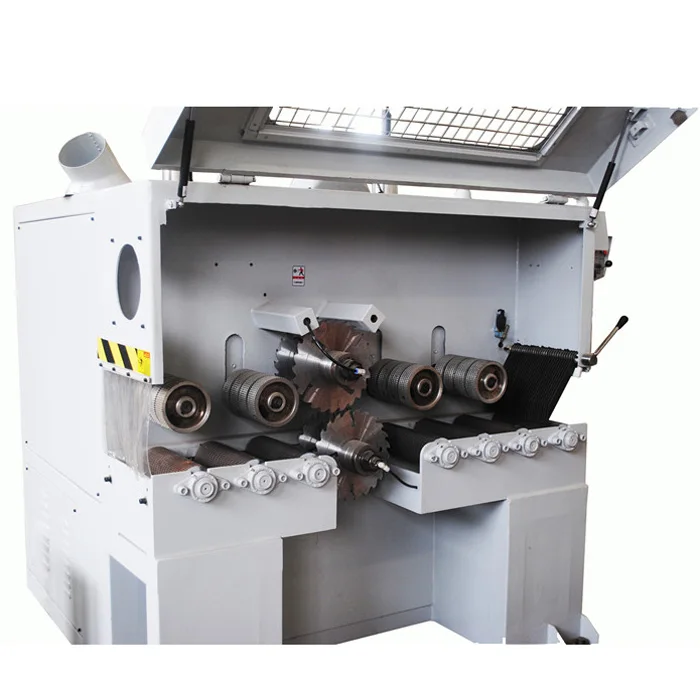

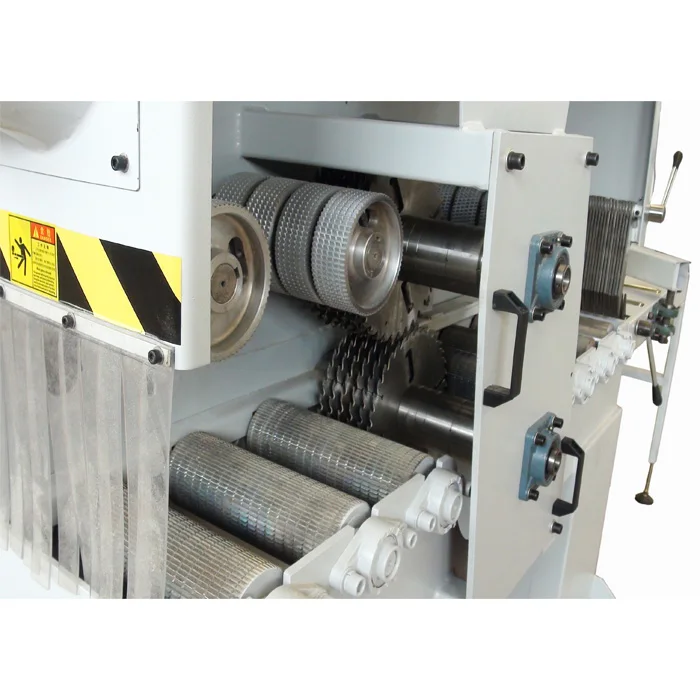

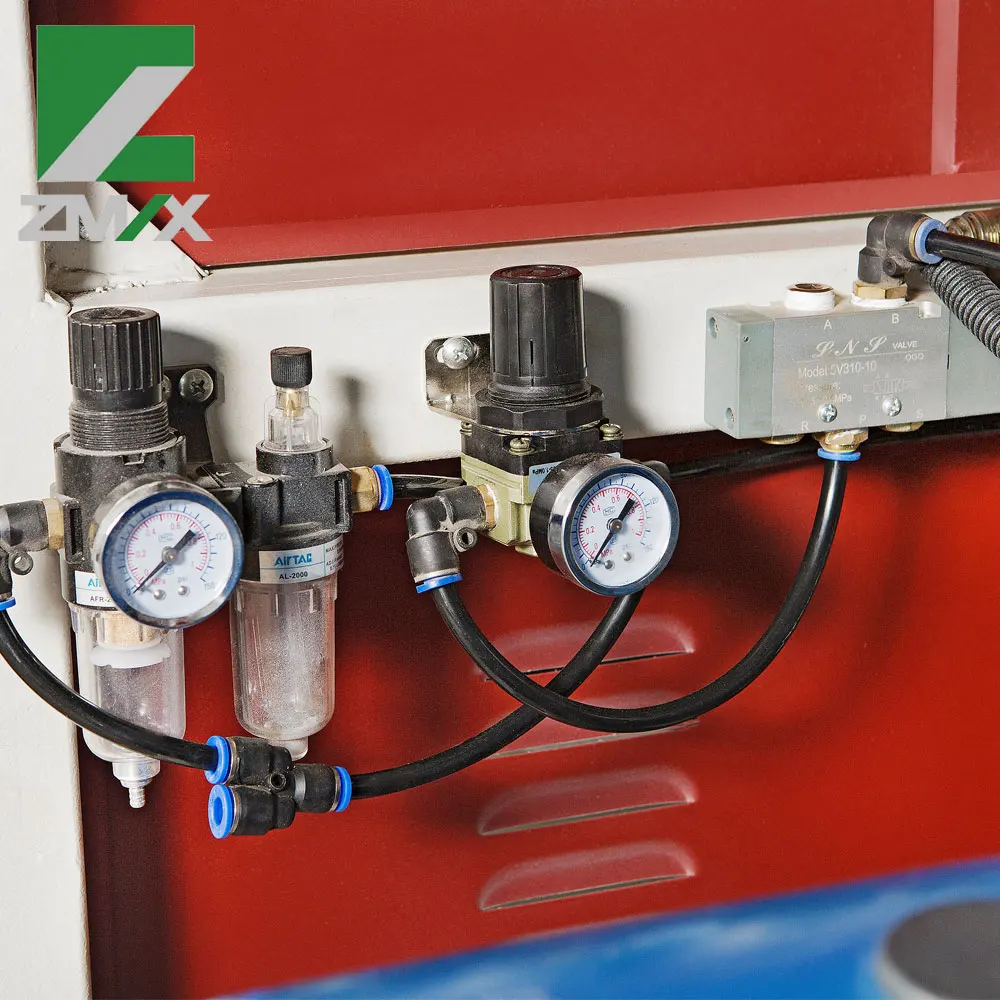

The saws structure with dual saw, through the feed rollers and pressure roller composed of feeding, pneumatic compression and electric control system, complete the multi-rip sawing wood to achieve continuous production process. Rubber plank woodworking multi rip saw machine



Benefit:

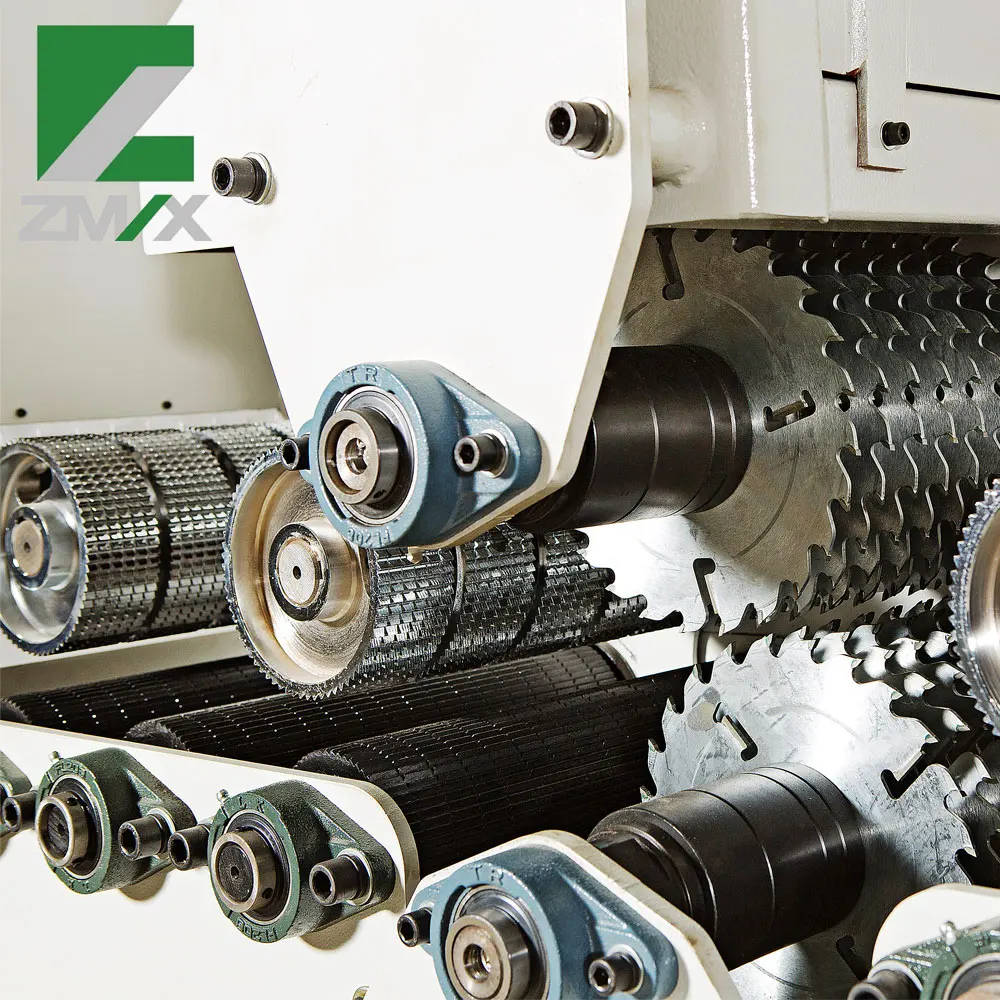

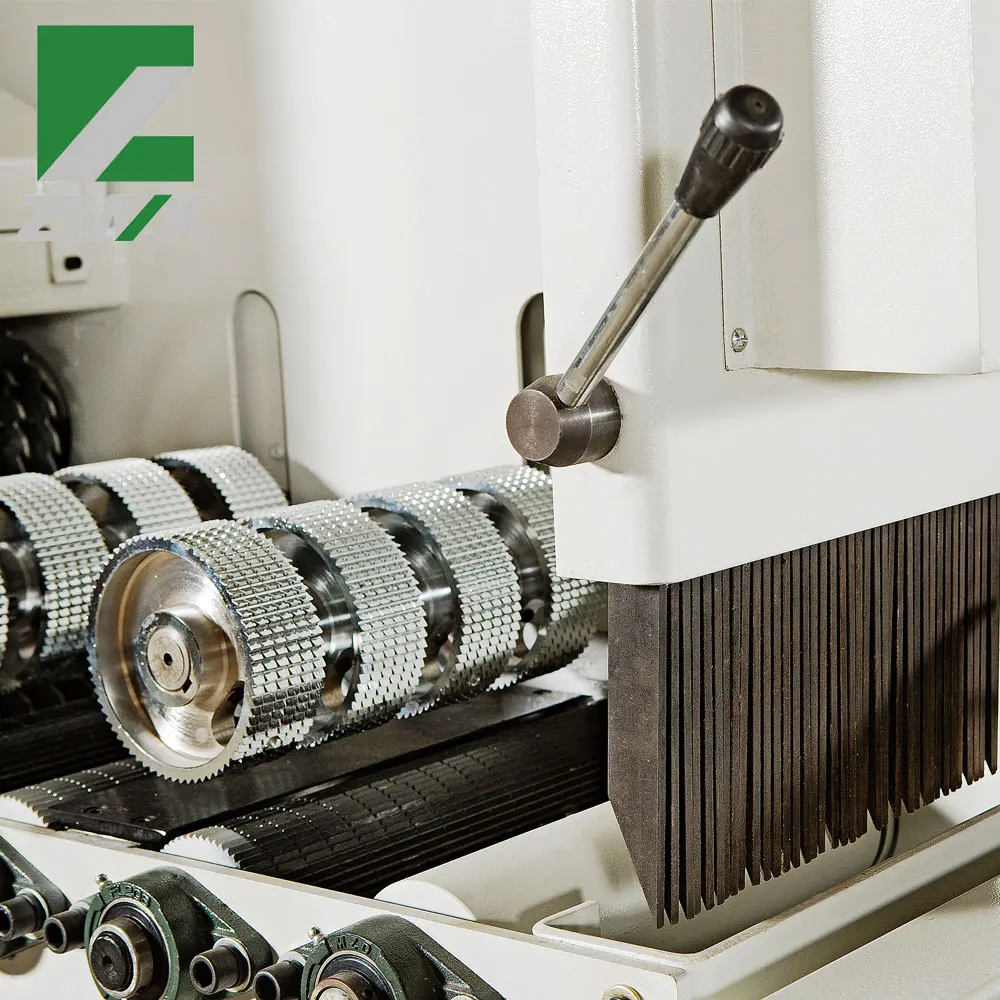

1.Roller device, stable feeding

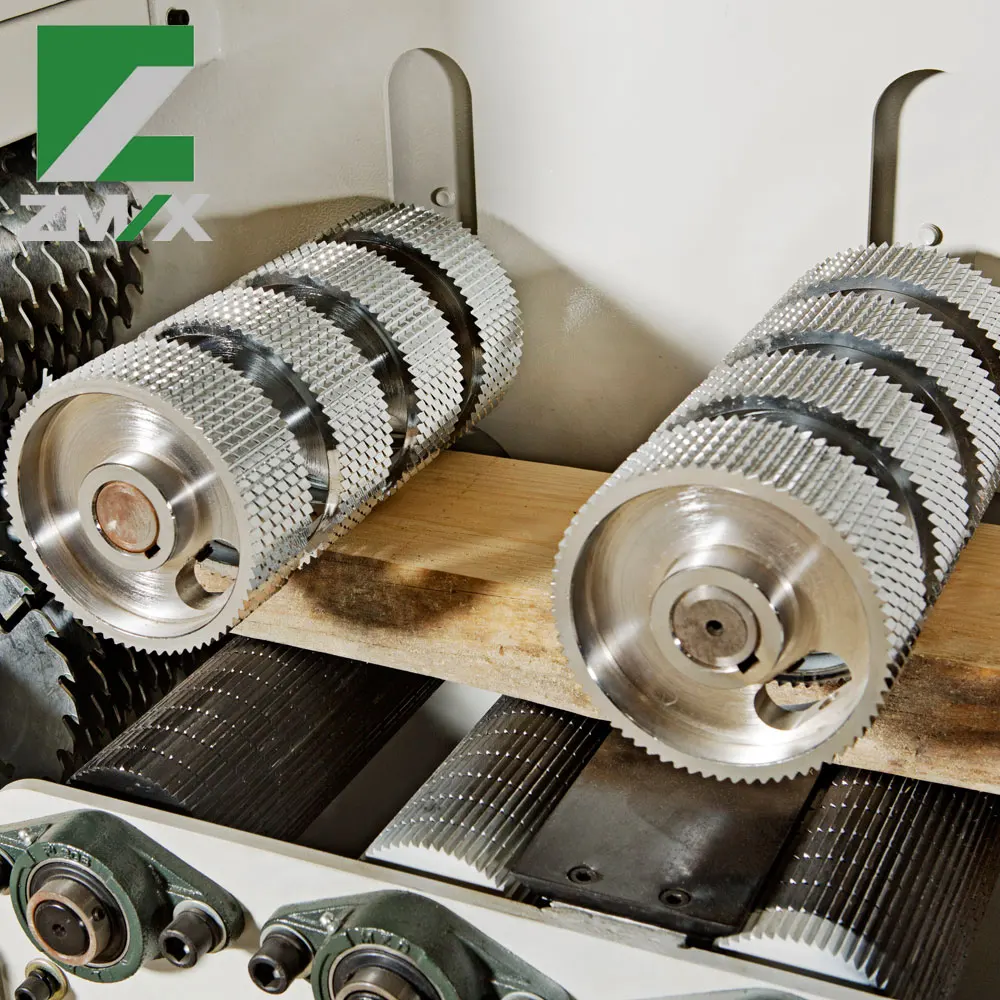

2.Steel wheel feeding (with power)



3.Infrared calibration

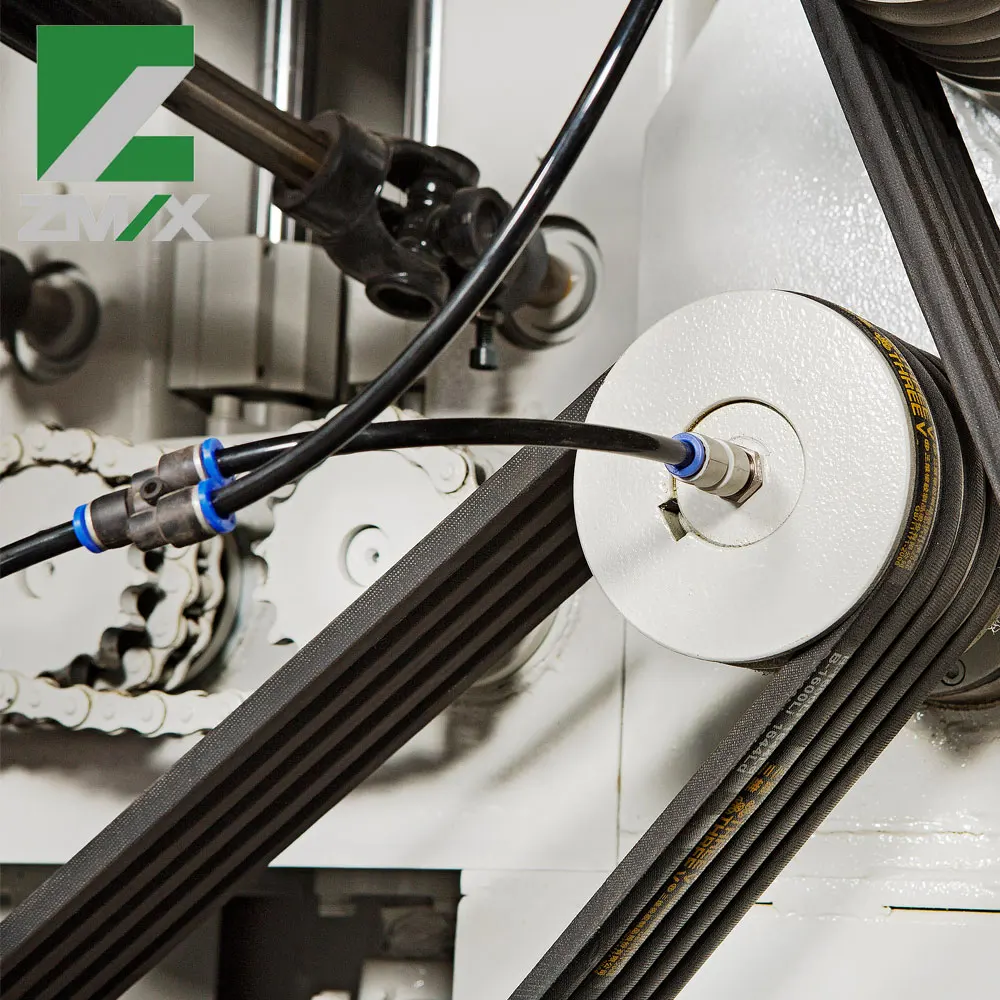

4.Patent of axis core water spray technology



5.First company use revolving joint in China, energy efficiency and environmental protection





Application:



1.Solid wood processing factory, timber log sawmill line.



2.Company which want to lower the labors, greatly improve the speed, which want to achieve the factory automatic.



3.Who want to replace of the traditional band saw machine.





Instructions:



1.The power switch close to through to the position, this time the power indicator, the power to open.



2.Press the green light spindle START button, spindle started to spin. (note: the machine before run, to make sure the power wiring the correct sequence, namely the right to, clockwise), press the red button to STOP spindle, spindle STOP working.



3.According to the feeding pattern to choose different position, feeding mode has two patterns. Automatic feeding and manual mode



4.Backing only has the manual mode. If you want to back, the first step is to stop on the back pressure until top to the end then open travel switch back and click on the material button.Rubber plank woodworking multi rip saw machine

Remark:



Specification

MJ-3016

Max. working width

300mm

Min. working width

80mm

Max. working height

175mm

Min. working height

30mm

Max. working length

4000mm

Min. working length

800mm

Feeding power

1.5kw(2HP)

Main spindle power

22kw-4(30HP)

Bottom spindle power

22kw-4(30HP)

Total power

45.5kw(62HP)

Feeding speed

0-8m/min

Overall dimension

3050*1650*1850(mm)

Saw blade specification

280*3.0*40*24T*4K

Weight

1500kg




Contact Us


Company information

More Information about ZMAX Machinery~

            ZMAX MACHINERY CO., LTD. is a professional company in design ,production and

sales of wood working machinery tool and cutter,whose products are widely

used in the area of wood and log processing .



Advantage of ZMAX Machinery :



1:specializing in wood working machinery for 15 years



2:high quality with most competitive price in the whole market



3: Efficient wood processing solutions will be provided to you to help you solve the wood processing problem



Company Profile

Company Office:







Our services

 Guarantee and after sales-service of ZMAX:



1)The machine is guaranteed for 12 months.


2)Free sawmill processing solutions  will be provided to you.



FAQ

 FAQ(Frequently Asked Question):



 1.What's our MOQ(minimum order quantity)?

 MOQ is 1 sets for each model



 2.How about delivery time?

generally is 30days after received deposit



 3.Payment terms ?

30% deposit by T/T,balance should be paid before shipment

Western union



 4.Product guarantee period ?

 1 years guarantee under good protection



Factory of ZMAX:







Our Exhibition:





Our certification:





We ZMAX Machinery Co., Ltd. is a professional woodworking machinery manufacturer over 15 years~

                                                                                Welcome to inquiry and visit~



                        For more information, welcome to click:www.g-zmax.com



                              Welcome to watch our video on Youtube:





                        https://www.youtube.com/user/RuiMaMachinery
