Quick Details

  • Condition: New
  • Type: Circular Saw
  • Use: Woodworking
  • Style: Vertical
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: ZMAX
  • Model Number: MJ-4025
  • Usage: for Solid wood processing factory cutting timber
  • Voltage: 380V
  • Power(W): 114kw(150HP)
  • Dimension(L*W*H): 5530*2140*1590(mm)
  • Weight: 3300kg
  • Certification: CE
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Max. working width: 400mm
  • Max. working height: 275mm
  • Min. working length: 800mm
  • Up spindle power: 55kw
  • Bottom spindle power: 55kw
  • Feeding power: 4kw
  • Feeding speed: 0-8m/min
  • Total power: 114kw
  • Saw blade specification: 405*4.0*70*40T*6K

Packaging & Delivery

Packaging Details: EPE Packing

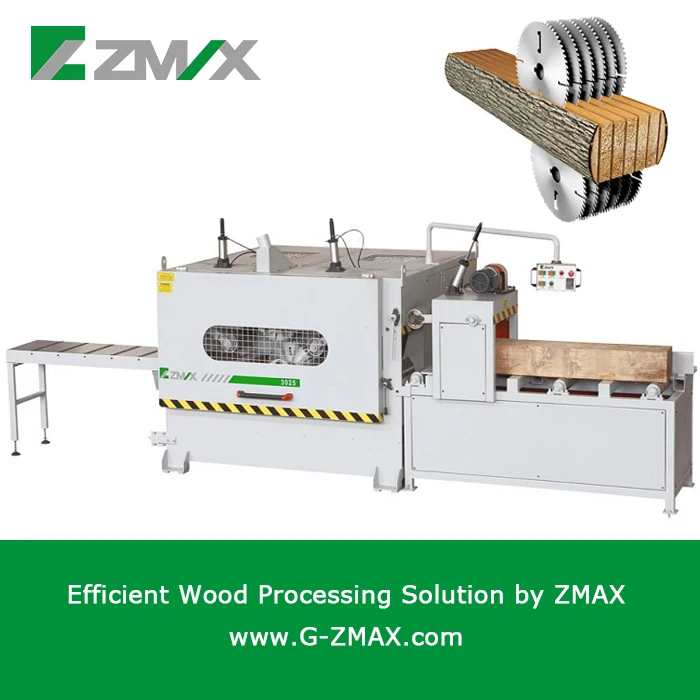

Plank Multi-rip Saw Machine
Model : MJ-4025



Features:



Machine designed for Plank processing, max working thickness 275mm, max working width 400mm, two bearing structure. Multi rip saw working high efficiency.



Advantages:

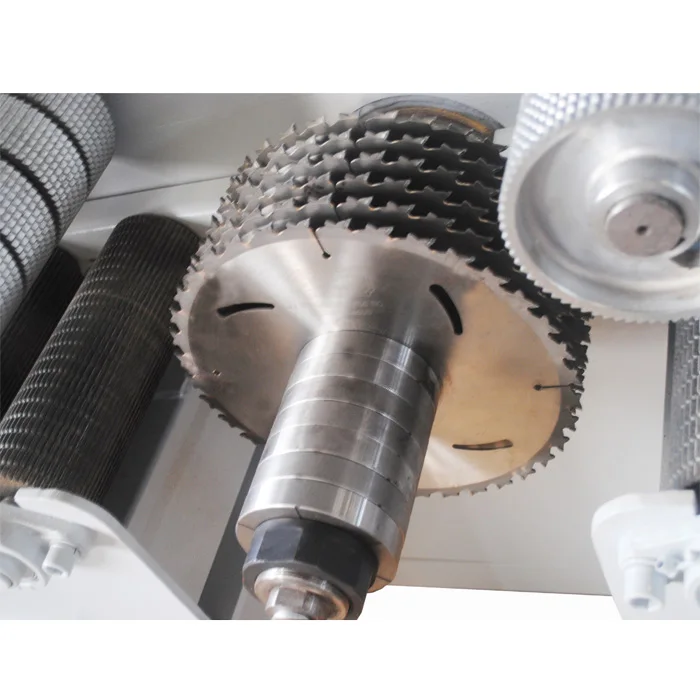

The saws structure with dual saw, through the feed rollers and pressure roller composed of feeding, pneumatic compression and electric control system, complete the multi-rip sawing wood to achieve continuous production process.

Benefit:



1.Roller device, stable feeding



2.Steel wheel feeding (with power)



3.Infrared calibration



4.Patent of axis core water spray technology



5.First company use revolving joint in China, energy efficiency and environmental protection

Application:



1.Solid wood processing factory, timber log sawmill line.



2.Company which want to lower the labors, greatly improve the speed, which want to achieve the factory automatic.



3.Who want to replace of the traditional band saw machine.





Instructions:



1.The power switch close to through to the position, this time the power indicator, the power to open.

2.Press the green light spindle START button, spindle started to spin. (note: the machine before run, to make sure the power wiring the correct sequence, namely the right to, clockwise), press the red button to STOP spindle, spindle STOP working.

3.According to the feeding pattern to choose different position, feeding mode has two patterns. Automatic feeding and manual mode

4.Backing only has the manual mode. If you want to back, the first step is to stop on the back pressure until top to the end then open travel switch back and click on the material button.



Remark:



Specification

MJ-4025

Max. working width

400mm

Min. working width

100mm

Max. working height

275mm

Min. working height

100mm

Max. working length

4000mm

Min. working length

800mm

Feeding power

4kw(5.4HP)

Up spindle power

55kw(74.8HP)

Bottom spindle power

55kw(74.8HP)

Total power

114kw(150HP)

Feeding speed

0-8m/min

Overall dimension

5530*2140*1590(mm)

Saw blade specification

405*4.0* 70*40T*6K

Weight

3300kg
