Quick Details

  • Condition: New
  • Type: Circular Saw
  • Use: Woodworking
  • Style: Vertical
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: ZMAX
  • Model Number: MJ-3025
  • Usage: wood cutting
  • Voltage: 380V
  • Power(W): 76.2kw
  • Dimension(L*W*H): 5530*2100*1590mm
  • Weight: 2650kg
  • Certification: CE
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Max. working width: 300mm
  • Max. working height: 275mm
  • Min. working length: 800mm
  • Up spindle power: 37kw
  • Bottom spindle power: 37kw
  • Feeding power: 2.2kw
  • Total power: 76.2kw
  • Feeding speed: 0-8m/min
  • Saw blade specification: 405*4.0*70*40T*6K

Packaging & Delivery

Packaging Details: EPE Packing

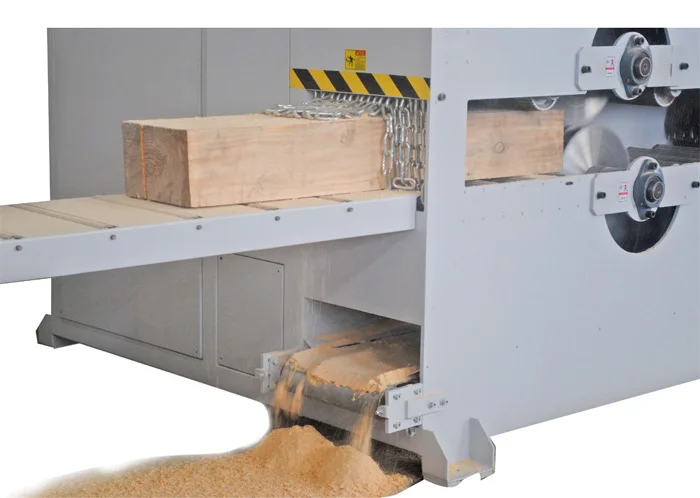

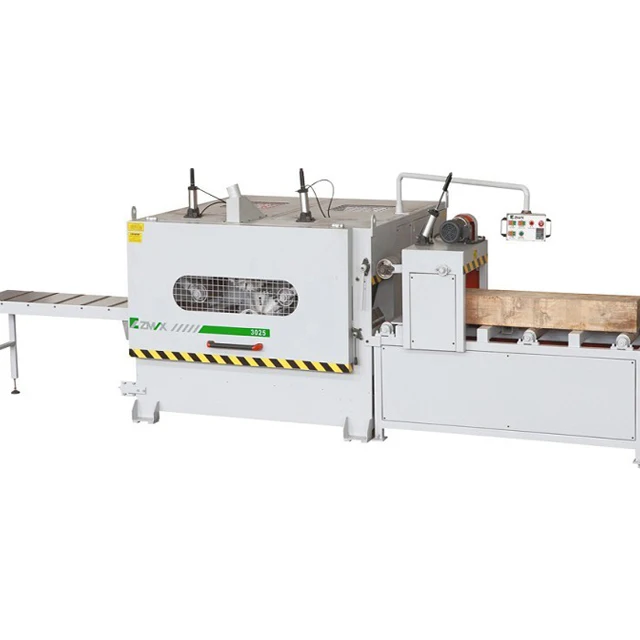

Automatic Multi-chip Vertical Wood Sawing Machine

Model : MJ-3025

Product Description



Features:

1.Machine designed for Plank processing,

2.Max working thickness 275 mm, max working width 300mm,

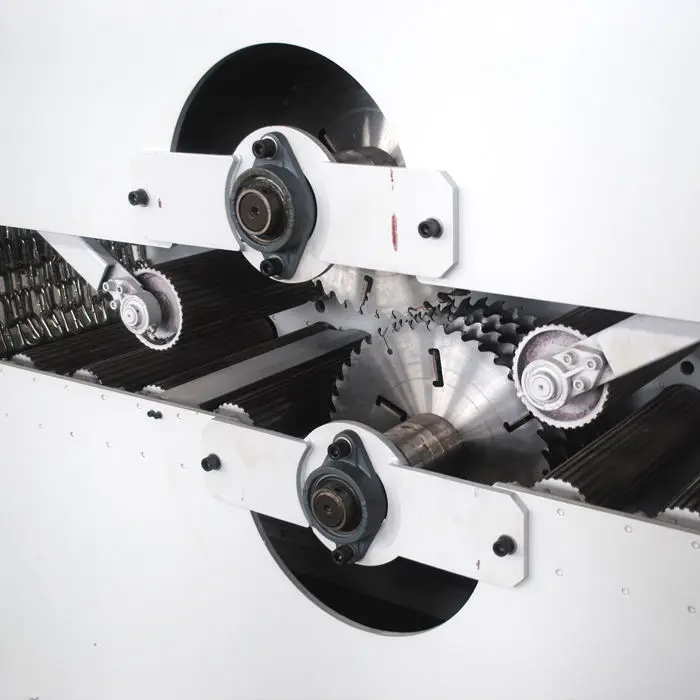

3.Two bearing structure. Multi rip saw working high efficiency.





Advantages:

The saws structure with dual saw, through the feed rollers and pressure roller composed of feeding, pneumatic compression and electric control system, complete the multi-rip sawing wood to achieve continuous production process.



Benefit:

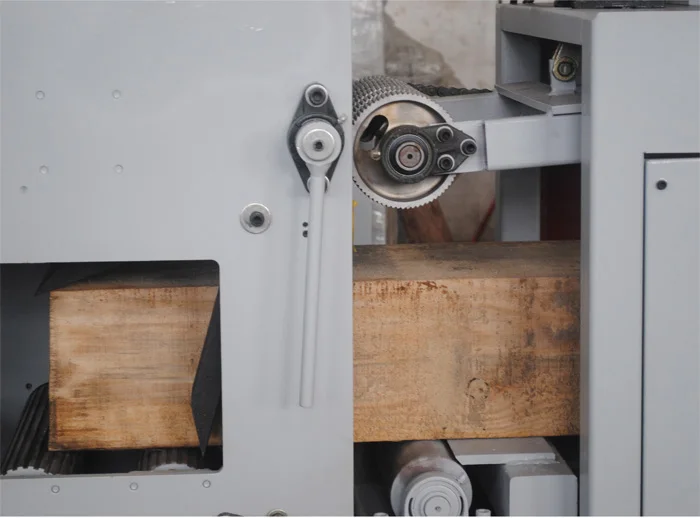

1.Roller device, stable feeding

2.Steel wheel feeding (with power)

3.Infrared calibration

4.Patent of axis core water spray technology

5.First company use revolving joint in China, energy efficiency and environmental protection



Application:



1.Solid wood processing factory, round log sawmill line.

2.Company which want to lower the labors, greatly improve the speed, which want to achieve the factory automatic.

3.Who want to replace of the traditional band saw machine.





Instructions:



1.The power switch close to through to the position, this time the power indicator, the power to open.

2.Press the green light spindle START button, spindle started to spin. (note: the machine before run, to make sure the power wiring the correct sequence, namely the right to, clockwise), press the red button to STOP spindle, spindle STOP working.

3.According to the feeding pattern to choose different position, feeding mode has two patterns. Automatic feeding and manual mode, in automatic mode must first start spindle then click on the button feed, the machine system is non-stop work. Until press feeding stop button or press the stop button spindle so far. In manual mode, the relationship between feeding system and the button is: press the button feeding, loosen the button to stop.

4.Backing only has the manual mode. If you want to back, the first step is to stop on the back pressure until top to the end then open travel switch back and click on the material button.



Remark:

Specification

MJ-3025

Max. working width

300mm

Min. working width

80mm

Max. working height

275mm

Min. working height

100mm

Max. working length

800mm

Min. working length

4000mm

Feeding power

2.2kw(3HP)

Up spindle power

37kw(50.3HP)

Bottom spindle power

37kw(50.3HP)

Total power

76.2kw(103.6HP)

Feeding speed

0-8m/min

Overall dimension

5530*2100*1590(mm)

Saw blade specification

405*4.0* 70*40T*6K

Weight

2650kg





Contact Us





Company information

More Information about ZMAX Machinery~

            ZMAX MACHINERY CO., LTD. is a professional company in design ,production and

sales of wood working machinery tool and cutter,whose products are widely

used in the area of wood and log processing .



Advantage of ZMAX Machinery :

1:specializing in wood working machinery for 15 years

2:high quality with most competitive price in the whole market

3: Efficient wood processing solutions will be provided to you to help you solve the wood processing problem





Company Profile

Company Office:





Our service

 Guarantee and after sales-service of ZMAX:



1)The machine is guaranteed for 12 months.
2)Free sawmill processing solutions  will be provided to you.



FAQ

 FAQ(Frequently Asked Question):



 1.What's our MOQ(minimum order quantity)?

 MOQ is 10sets for each model



 2.How about delivery time?

generally is 30days after received deposit



 3.Payment terms ?

30% deposit by T/T,balance should be paid before shipment

Western union

 4.Product guarantee period ?

 1 years guarantee under good protection

Factory of ZMAX:

Our Exhibition:

our certification:





We ZMAX Machinery Co., Ltd. is a professional woodworking machinery manufacturer over 15 years~

    Welcome to inquiry and visit~
